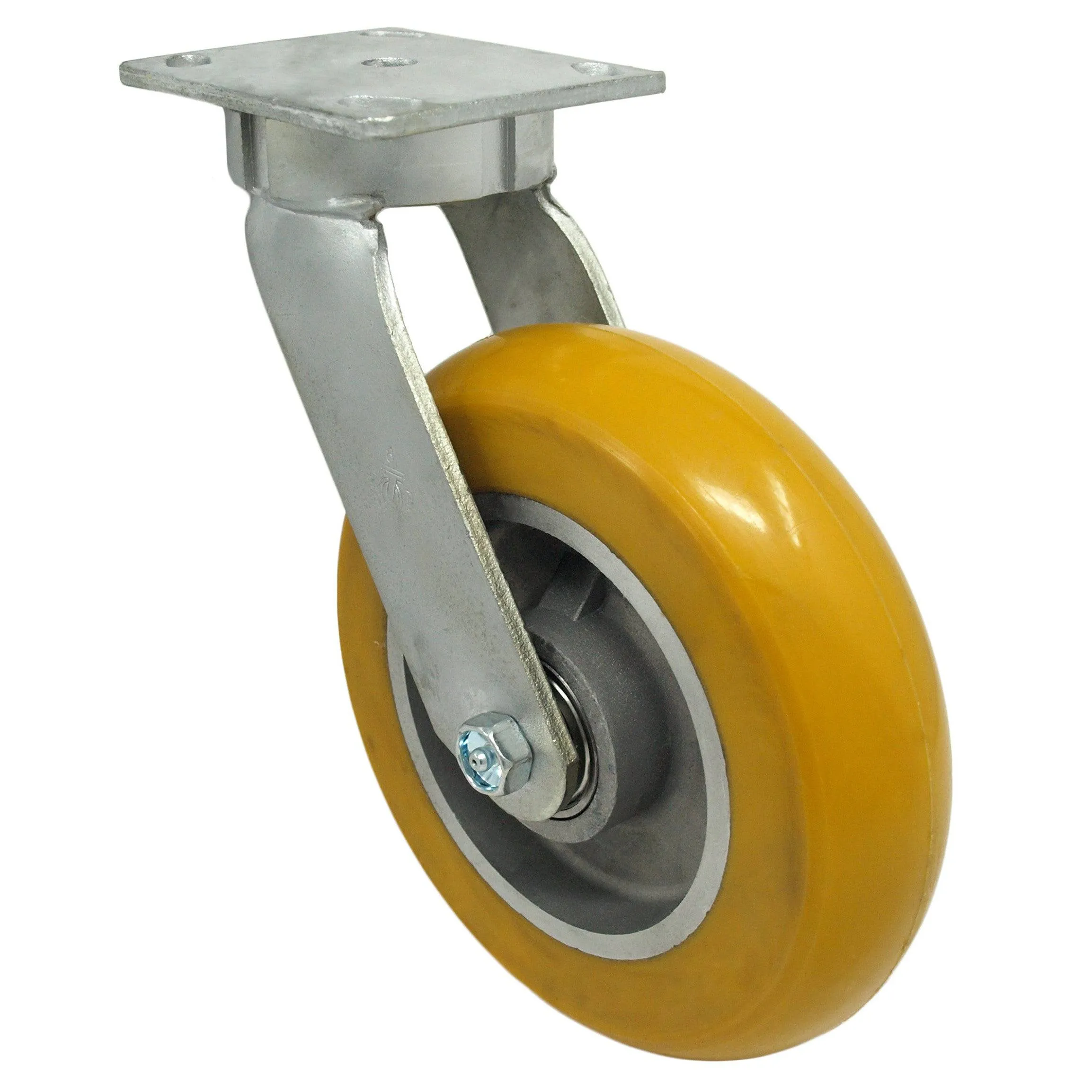

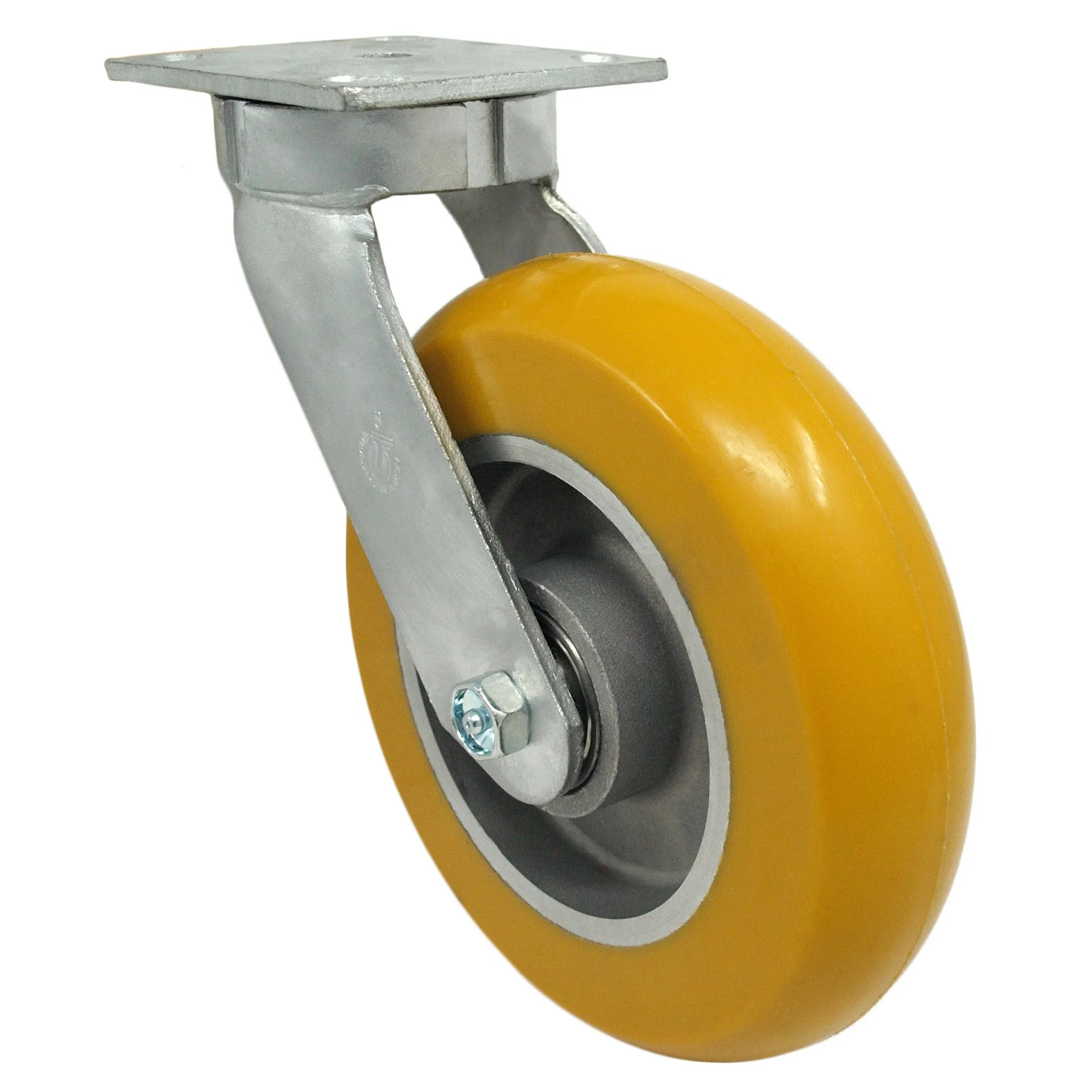

8" x 2" Ultraflex Wheel Swivel Kingpinless Caster
The Ultraflex is uniquely formulated for best ergonomic push/pull after set and in-line operation. Extra thick polyurethane tread gives best rebound strength and cushion ride. Swivel device is a combination of ball thrust bearings and tapered roller bearings for maximum performance.
Tread: Extra thick polyurethane
Core: Steel
Bearing: Sealed Precision Bearing
Rig: Zinc-plated swivel caster, 4" x 4-1/2" mounting plate
- Capacity: 1,200 Lbs.
- Color: Yellow
- Durometer: Shore A 80 ( /-5)
- Temperature Range: -50° F to 180° F
| Load Capacity | 1200 Lbs. |
| Wheel Diameter |
8" |
| Tread Width |
2" |
| Wheel Type |
Ultraflex super elastomer |
| Bearing Type |
Sealed Precision Bearing |
| Wheel Color |
Yellow |
| Overall Height |
9-1/2" or 10-1/8" |
| Swivel Radius |
5" or 5-1/2" |
| Plate Size |
4" x 4-1/2" |
| Bolt Hole Pattern |
2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter |
3/8" |
| Durometer | Shore A 80 ( /-5) |
| Temperature Range | -50° F to 180° F |
